Description
Applications.
I For heavy duty core drilling up to Ø 400 mm together with Husqvarna drill stands.
I For a variety of materials, including reinforced concrete, brick and other building materials.
I Heavy-duty applications like water evacuation, ventilation and plumbing channels, waste evacuation pipes, gas supply pipes, barriers, road signs and holes in corners for wall sawing openings.
I For angle drilling, stitch drilling and drilling in all directions, with Husqvarna drill stands.
Benefits.
I Equipped with ElgardTM which indicates via the LED if the machine is overloaded. This means the operator can always drill at maximum pressure, preventing motor damage and extending product life.
I Pressing the SmartStartTM button reduces start speed by 50 %.

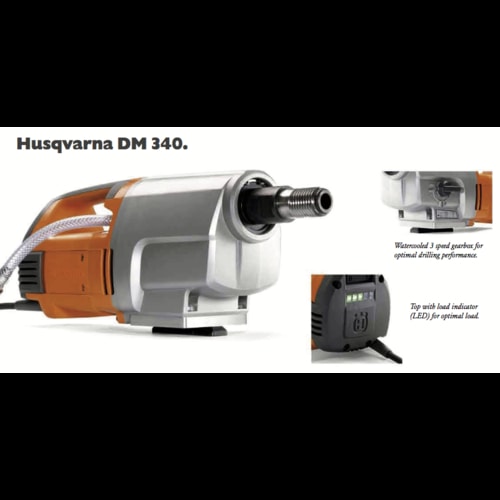

Watercooled 3 speed gearbox for optimal drilling performance.
Top with load indicator (LED) for optimal load.
I SoftStartTM – electronic current limiter means full speed is reached about two seconds after start.
I Ergonomically designed handle for easier transport and faster set-up.
I The controls are designed and positioned to enhance ergonomics and facilitate operation.
I The water hose can turn 180, for greater flexibility in terms of setup configuration.
Technical specifications.
Power
1-phase rated voltage Spindle speed full load Spindle thread
Rec. drill diameter, max Weight
More technical specifications on page 180.
Product specifications.
DM 340, 230 V
