Description

Deskripsi & Spesifikasi

Product Functions

The data memory device can store up to 2000 historical records permanently ( the device in graphic systems can be expandable up to 20 million records ).
Composed sound alarm function ( broadcast in human voice to annunciate with Operators ).
SLCs, IDCs are equipped with insulation false inspection function.
Protection against lightning surge.
Two-stage alarm delay function.

Characteristics

English LCD screen ( 240 x 128 or characters ).
Two-wire Circuits for supper long transmission distance (up to 2 km between the control panel and modules).
Equipped with 3 sets of RS-485 communication ports to connect with central PC’s monitoring and control system.
Can connect up to 16 Addressable Fire Alarm Annunciators.
A table to review all I/O modules’statuses is available for easier operation.
Addresses and interlinks can be checked in a table in the LCD screen.

DIMENSIONS

CABINET

WALL MOUNT

Addresses / Loop

128 / 1L

256 / 1L

H ( mm )

370

W ( mm )

480

D ( mm )

ITEM	SPECIFICATION

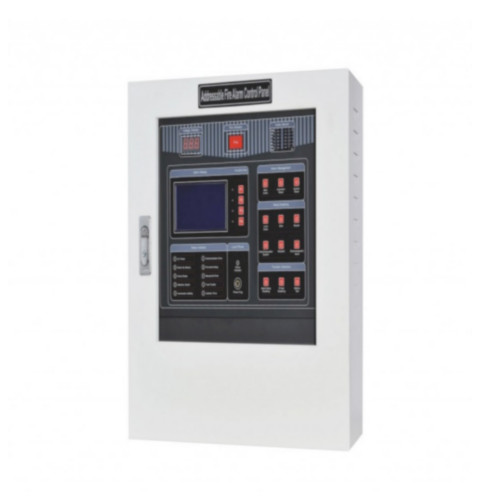

Model	YFR-1
Power Source	110V AC 50/60 Hz or 220V AC 50/60 Hz
Addresses / Loop	128 Addresses / 1 Loop
Stanby Battery	24V DC maintenance free sealed lead acid battery
Communication Loop Maximum Length	Two-wire ( able for branch wiring ) 1.5 km
Annunciator Connection	Use RS-485 for 800 m, Network Signal Transceiver for 3 km and Optical Fiber for up to 40 km distance.
Loops Voltage	Load Power / Indicating Lamp / Zone Thelepone : 24V DC SLC power source : 32V AC
Power Comsumption	Stanby Main Alarm Board ; 500 mA ( max. ) Stanby SLC communication module : 280 mA (max.) / module
Transmission Method	Selective and sequential ( I/O modules )
Output Relay Method	Each module has 40 contacts, expandable up to 160 contacts Up to 13 modules can be installed for 2.040 contacts
Main Audio	Sound Mixer, Human Voice and Alarm Sound (above 90 dB)
Ambient Temperature	0-40 Degree Celcius
Cabinet Material	Flame retardant ABS enclosure
